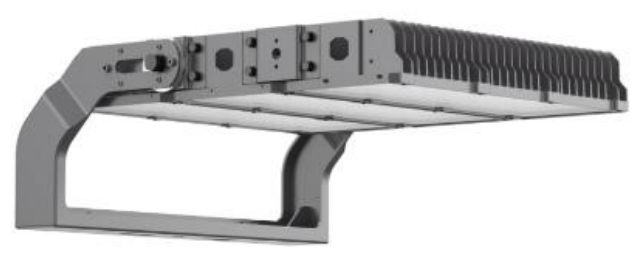

ALDO 1, 2, 3

Name: ALDO 1, 2, 3
Brand: Crossberry

ALDO is built for installations with strict requirements on spill light and glare. The optics are designed to be combined with glare visors and accessories that fit directly onto the standard version, and are available for horizontal as well as more vertically directed light. The driver box can be mounted on the floodlight or at the base section of the mast, and the bracket allows the aiming angle to be adjusted easily.

Request a quotation

Key data

Power: 400–1800 W
Efficacy: 130–185 lm/W depending on version
Protection: IP66 / IK08
Corrosivity class: C5
Surge protection: 20 kV
Placement: Height 6–50 m, 10–100 m from the lit surface

Applications

Installations with strict spill light requirements
Installations with strict glare requirements
Football, large and small arenas
Large and small outdoor areas
High-precision surfaces with demanding requirements
Sport
Airports
Ports
Car parks
High masts
Downward or vertically directed light

Variants

Versions
Version	Power	Dimensions	Weight
ALDO 1	400–750 W	L 695 × W 266 × H 257 mm	11.5 kg
ALDO 2	1200–1500 W	L 705 × W 670 × H 295 mm	23.6 kg
ALDO 3	1250–1800 W	L 785 × W 705 × H 320 mm	32 kg
Driver box 1, 2, 3	—	L 514 × W 157 × H 107 mm	6 kg

Specification

Source: Crossberry datasheet, revision 2025-12-08

Control & certification

Surge protection	20 kV
Control	0–10 V dimmable, DALI (DMX on request)
Driver box	Separate driver box or integrated in the floodlight
Corrosivity class	C5

Light performance

Real lumen output	130–185 lm/W depending on version
Correlated colour temperature	4000 K standard, other Kelvin on request
Colour rendering	CRI70 standard (CRI80, CRI90 on request)
Optics	Different optics depending on application, glare visors available

Lifetime

Lumen maintenance L94	100,000 h without CLO
Lumen maintenance L80	120,000 h without CLO
Lumen maintenance L70	155,000 h without CLO (IESNA LM80)

Electrical

Electrical safety class	I EU, earthed version
Mains voltage	220–240 V AC / 50–60 Hz
EMC	Driver and luminaire to EN 55015, EN 61000-2-3, EN 61547
Operating temperature	-30 °C to +50 °C

Mechanical & installation

Material	High-pressure die-cast aluminium, stainless / hot-dip galvanised steel
Housing colour	Grey
Mounting	Bracket for suspended luminaire or standing on beam
Connection cable	Pre-fitted, length varies by version. DALI is connected separately in the driver box

Project-specific versions are available on request.
