Street & Park Lighting

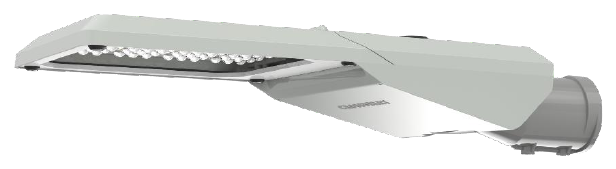

NODE 2
NODE 2 covers the mid range of the NODE family with a larger optical area for wider road profiles. Lens optics behind flat glass, programmable DALI-2 driver and pre-fitted installation cable make it a direct replacement in refurbishment projects.
Key data
- Article no.
- 1031XX, 1021XX
- Efficacy
- 137–173 lm/W at 4000 K
- Dimensions
- L 650 × W 273 × H 114 mm
- Weight
- 7–8 kg
- Protection
- IP66 / IK09
- Pole entry
- Ø 40–60 mm
Applications
- Major and minor road types
- Local streets, pedestrian and cycle paths
- Car parks
- Illuminated exercise trails

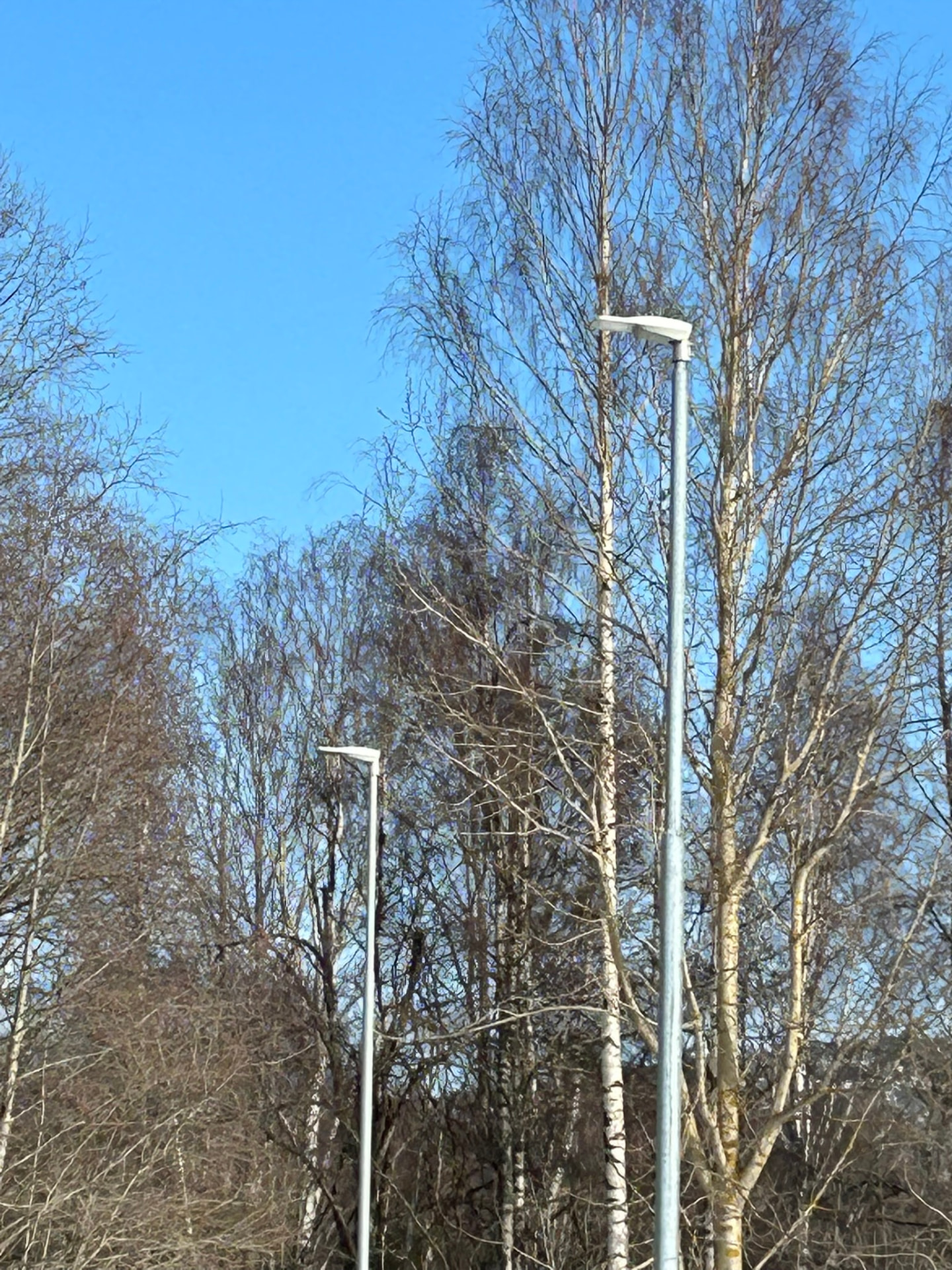

In environment
Specification
Source: Crossberry datasheet, revision 2025-10-28
Control & certification
| Driver certificate | ENEC |
|---|---|
| Surge protection | 4 kV, 6 kV, 8 kV or 10 kV. Double protection on request |
| Programmable driver | Yes — 0–10 V, DALI-2, Night Dim |
| Manually adjustable driver | Not standard |
| CLO (constant light output) | Yes |
| Zhaga socket | 1 or 2 sockets on request. Standard version without Zhaga sockets |
Light performance
| Real lumen output | 4000 K, Ra70: 137–173 lm/W |
|---|---|
| Correlated colour temperature | 4000 K standard, other Kelvin on request |
| Colour rendering | CRI70, other CRI on request |
| SDCM | <5, other on request |
| Optics | Lenses and flat glass |
Lifetime
| Lumen maintenance L90 | 100,000 h |
|---|---|
| Lumen maintenance L80 | 140,000 h |
| Lumen maintenance L70 | 175,000 h (IESNA LM80) |
Electrical
| Electrical safety class | EU I or EU II |
|---|---|
| Mains voltage | 220–240 V AC / 50–60 Hz |
| EMC | Driver and luminaire to EN 55015, EN 61000-2-3, EN 61547 |
| Operating temperature | -40 °C to +55 °C |
Mechanical & installation
| Material | Complete luminaire in high-pressure die-cast aluminium |
|---|---|
| Housing colour | Light grey, RAL 7035 |
| Angle adjustment | 360° total freedom, fits all bracket angles and post-top |
| Recommended mounting height | 3–18 m depending on power |
| Wind area ScX | On request |
| Connection cable | MPC 3G1.5 + 2×0.5, 15 m. Other cable or length on request |
Project-specific versions are available on request.
